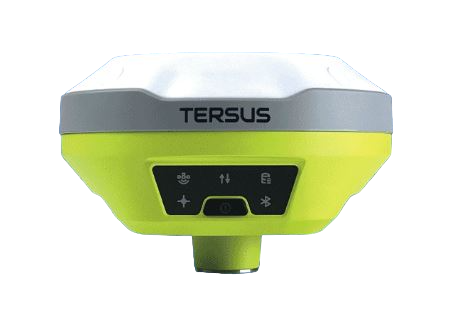

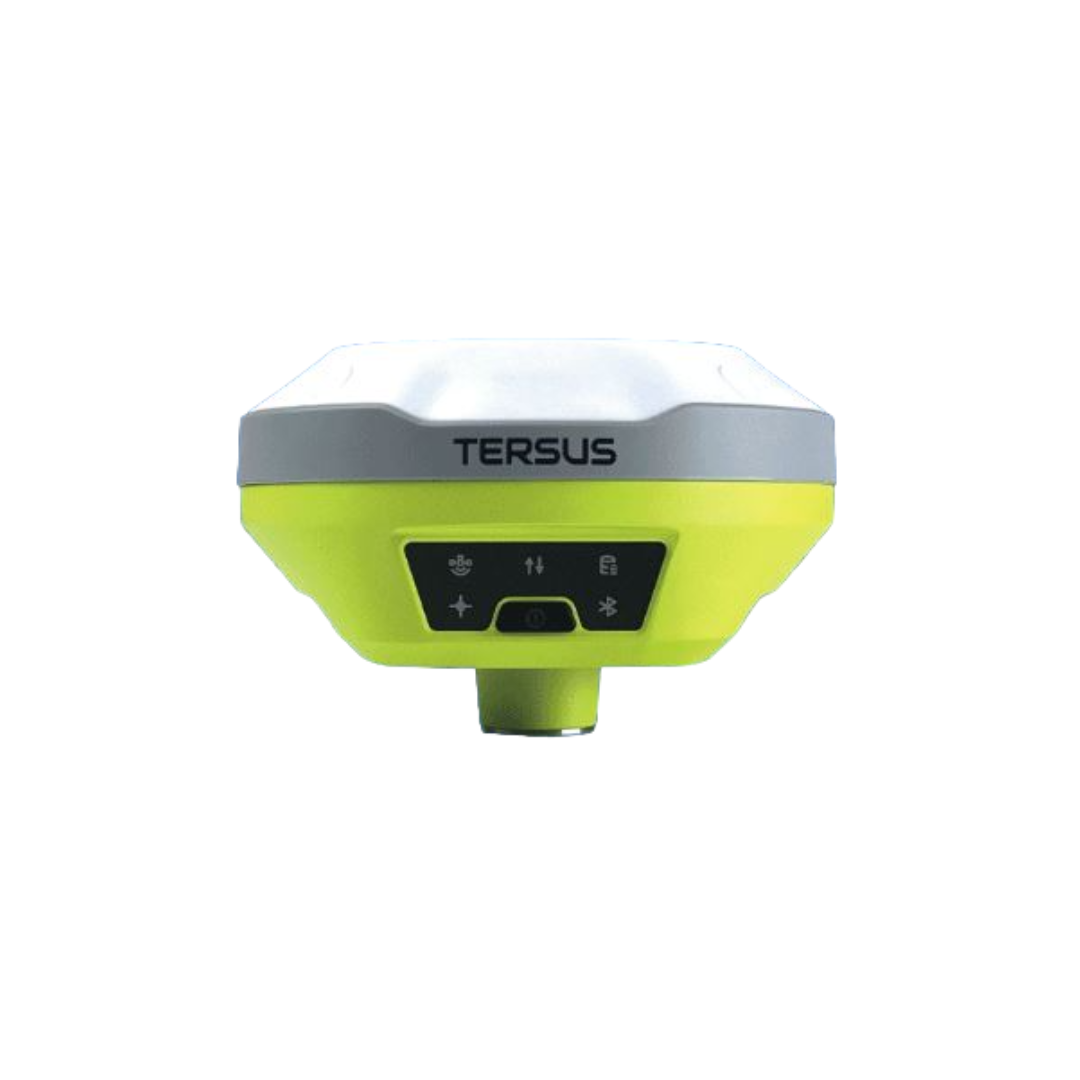

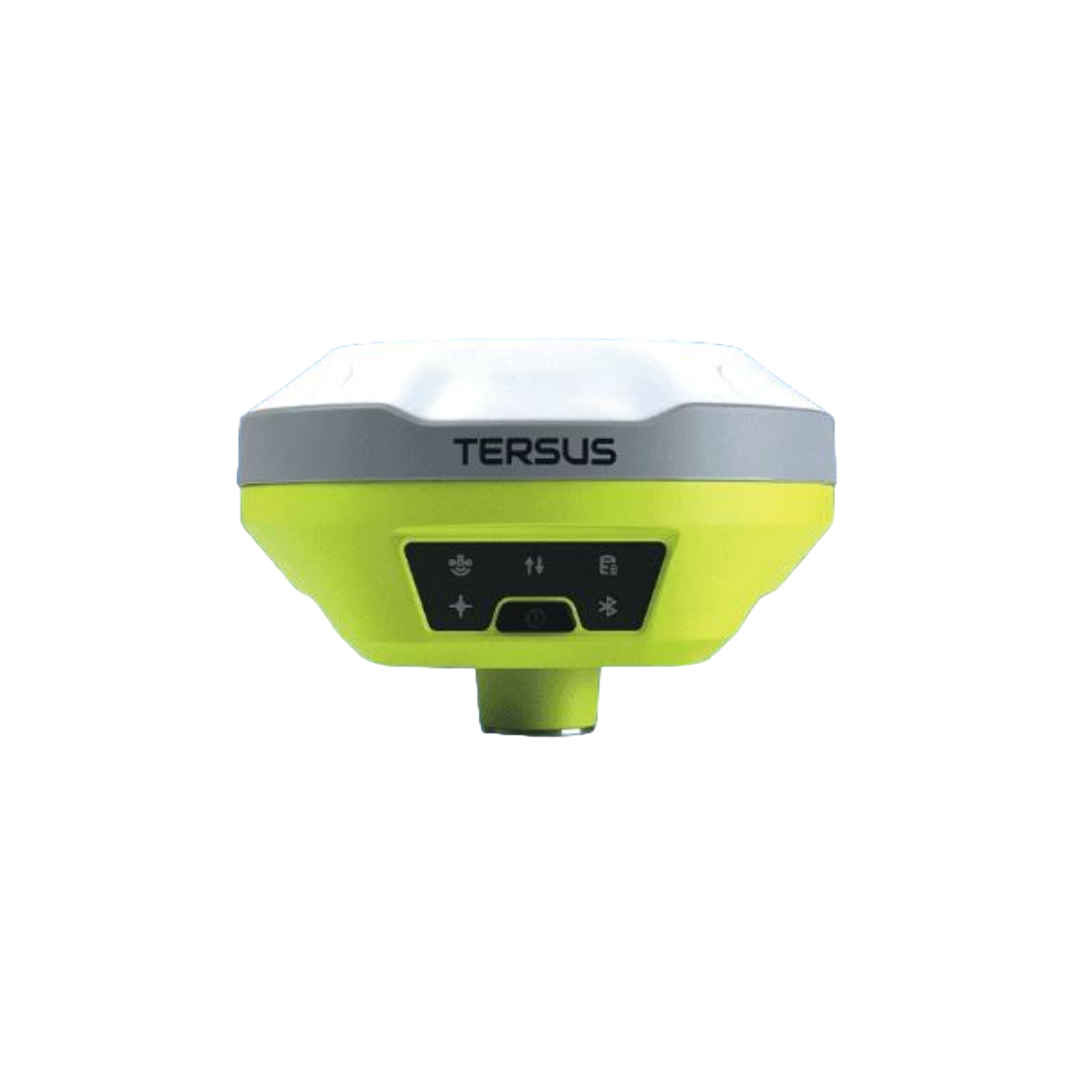

LUKA GNSS Receiver

Specification :

* Performance
Signal tracking :
GPS L1/L2/L5
BeiDou B1/B2/B3I/B1C/B2a
GLONAS L1/L2
Galileo E1/E5a/E5b
QZSS L1/L2/L5

* Channels : 1568

Single Point Positioning Acucuracy (RMS) :
-Horizontal : 1.5m
-Vertical : 2.5m

* Performance-Continued
Tilt compensation accuracy (No tilt angle limit) : ≤2cm(within 60°)
Timing Accuracy (RMS) : 20ns
Velocity Accuracy (RMS) : 0.03m/s

* System & Data
Operating System : Linux
Storage : 8 GB
Differental Data Format : CMR,RTCM 2.x, RTCM 3.x
Data Output : RINEX, NMEA-0183, Tersus Binary

* Communcation
Cellullar : 4G LTE/WCDMA/GSM/EDG
WiFi : 802.11b/g/n
Bluetooth : 4.1

* Internal Radio

RF Transmit Power：0.5W/1.0W
Frequency Range：410MHz-470MHz
Channel Spacing:Half-duplex
Air Baud Rate：4800 / 9600 / 19200bps

* Wired Communication
USB：Type-C, OTG

* Electrical
External Power Supply : Support USB (5-20V)
Fast Charging : Support, 15W max(5V 3A)
Battery : Built-in, 7000mAh/7.4V
Charging Time : 3 hours (20%-90%)
Working TIme : Up to 19 hours

* Physical
Dimension : ф132x68mm
Weight : <827 g
Operating Temperature : -40℃ ~ +70℃
Storage Temperature : -55℃ ~ +85℃
Relative Humidity : 100% not condensed
Dust & Waterproof : IP68
Pole Drop onto Concrete : 2m
